Electrical rooms
Discuss the environment, access constraints and required working height with our product team.
29-Inch Narrow Series
29-Inch Narrow Fiberglass Scaffold Tower System
A 29-inch narrow fiberglass scaffold system with 6-, 8- and 10-foot bay options, adjustable base frames and multiple extension-frame heights.
Non-conductive materialCorrosion resistantNationwide support
Purpose-built accessConfigured around the task, site and complete system
Narrow-Width Towers / 29-Inch Narrow Series

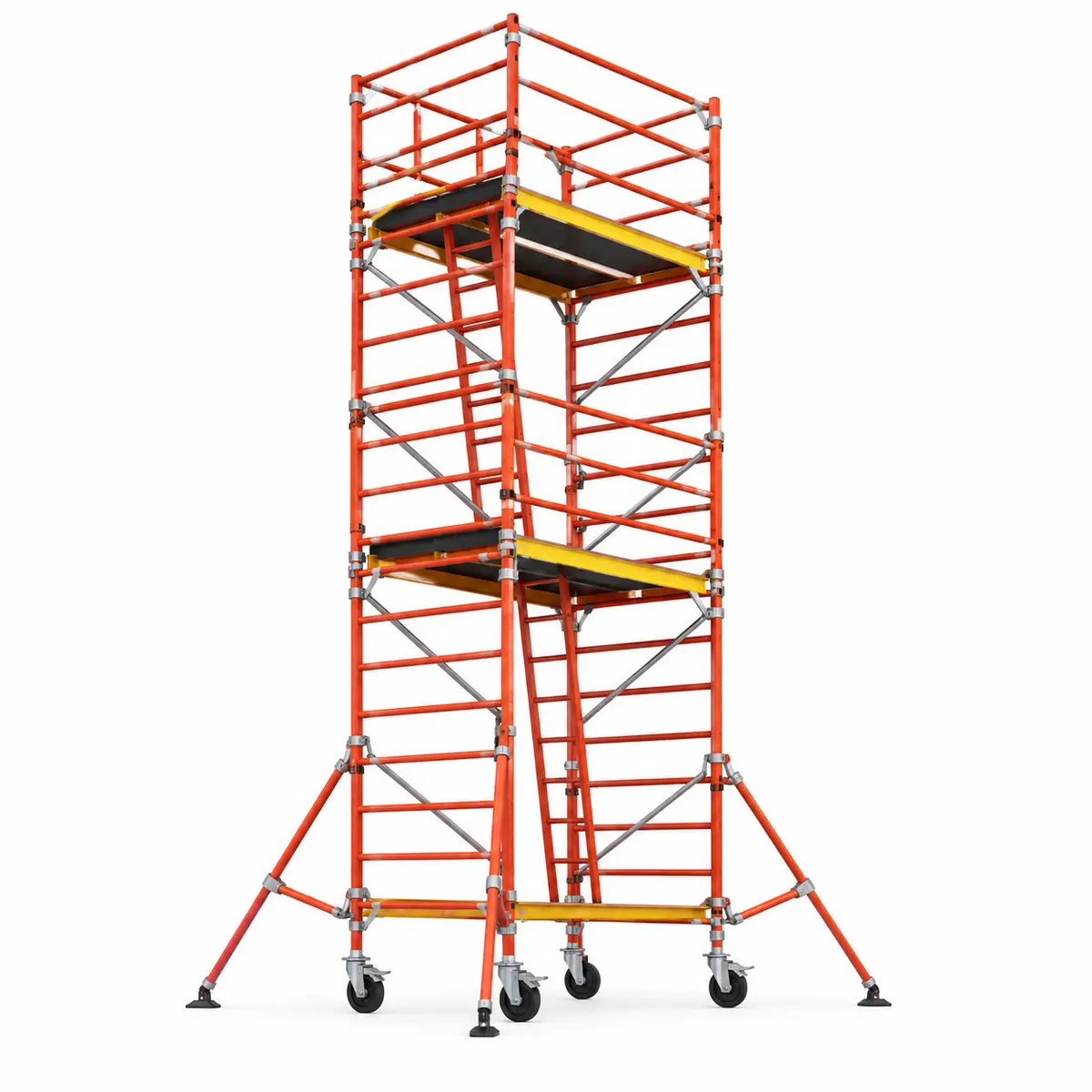

29-Inch Narrow Tower System
A true 29-inch narrow system with 6-, 8- and 10-foot bay options for tight electrical, utility and industrial access routes.
Fiberglass constructionMobile configurationQuote-specific U.S. supply
Request Configuration & PricingFinal capacity, tower height, components, color, regulatory suitability and availability are confirmed during quoting.
Technical overview
Product specifications
Imperial dimensions are rounded conversions from source metric measurements.
- Series
- 29-Inch Narrow Series
- Frame width
- 29 in
- Deck length
- 6, 8 or 10 ft
- Frame section heights
- Adjustable 6–7 ft base; 4 ft, 5 ft 6 in and 6 ft 9 in extensions
- Transom spacing
- Varies by selected frame
- Tube outside diameter
- Confirm with quote
- Material
- Fiberglass
- Mobility
- Caster-ready; casters quoted separately
- Shown color
- Orange / Red
- Availability
- Request a Quote
Common applications
Where this configuration fits
Selection requires a competent review of the complete system, work task, site conditions and applicable U.S. requirements.
Substations
Discuss the environment, access constraints and required working height with our product team.
Facility maintenance
Discuss the environment, access constraints and required working height with our product team.
Restricted industrial access
Discuss the environment, access constraints and required working height with our product team.
How to configure it
Build around the access problem
Use the 29-inch frame where route width and final work-zone clearance are limited. Confirm the complete assembled footprint, required platform height, stabilizer clearance, platform selection and caster package before ordering.
Discuss this configuration →What distinguishes this family
✓29-inch frame width
✓6-, 8- and 10-foot bay options
✓Adjustable 6–7 foot base frame
✓Multiple extension-frame heights
Configuration matrix
Available source dimensions
Measurements below are rounded imperial conversions. A quote confirms the exact component package supplied for the United States.
Frame width29 in
Platform or deck length6, 8 or 10 ft
Height rangeAdjustable 6–7 ft base; 4 ft, 5 ft 6 in and 6 ft 9 in extensions
Rung spacingVaries by selected frame
Shown colorOrange / Red
MobilityCaster-ready; casters quoted separately
Verified system references
Component reference table
Codes and dimensions are retained for identification and quote accuracy. Final quantity and compatibility are confirmed for the complete system.
- Adjustable base frame
USB2900A - 6–7 ft adjustable base
- 4 ft extension frame
UEX2940A - 4 ft frame section
- 5 ft 6 in extension frame
UEX2956A - 5 ft 6 in frame section
- 6 ft 9 in extension frame
UEX2969A - 6 ft 9 in frame section
- Guardrail frame
UGR2937 - 3 ft 7 in guardrail frame
- Horizontal braces
PHB06 / PHB08 / PHB10 - 6, 8 or 10 ft
- Diagonal braces
PDB06 / PDB08 / PDB10 - 6, 8 or 10 ft
- Regular stabilizer
PSR42 - 42 in class stabilizer
Configured tower references
Platform height and model reference
The table preserves supplier configuration references while the page title, description and merchandising remain unique to FiberglassScaffold.com.
Product-specific answers
29-Inch Narrow Tower System FAQs
These answers distinguish verified source specifications from requirements that must be confirmed for U.S. supply.
What bay lengths are available?
The source system includes 6-, 8- and 10-foot component sets. Current configured tower-kit references are published for 6- and 8-foot towers; 10-foot component availability is confirmed during quoting.
Which extension-frame heights are available?
The source catalog lists 4-foot, 5-foot-6-inch and 6-foot-9-inch extension frames plus an adjustable 6-to-7-foot base frame.
Are casters and platforms included automatically?
No. The source catalog notes that casters and platforms are ordered separately for the base section. The quote confirms the complete required package.
Compare configurations
Related fiberglass products
29-Inch High-Clearance
29-Inch High-Clearance Platform
High-clearance narrow access for working over low equipment and occupied floor areas where standard platform placement is impractical.
- Width
- 29 in base-family width
- Deck
- 6, 8 or 10 ft
- Color
- Orange / Red
29-Inch Quick-Base
29-Inch Quick-Base Scaffold
Compact quick-base access for narrow work zones, available in 6- and 8-foot bay configurations.
- Width
- 29 in
- Deck
- 6 or 8 ft
- Color
- Orange / Red

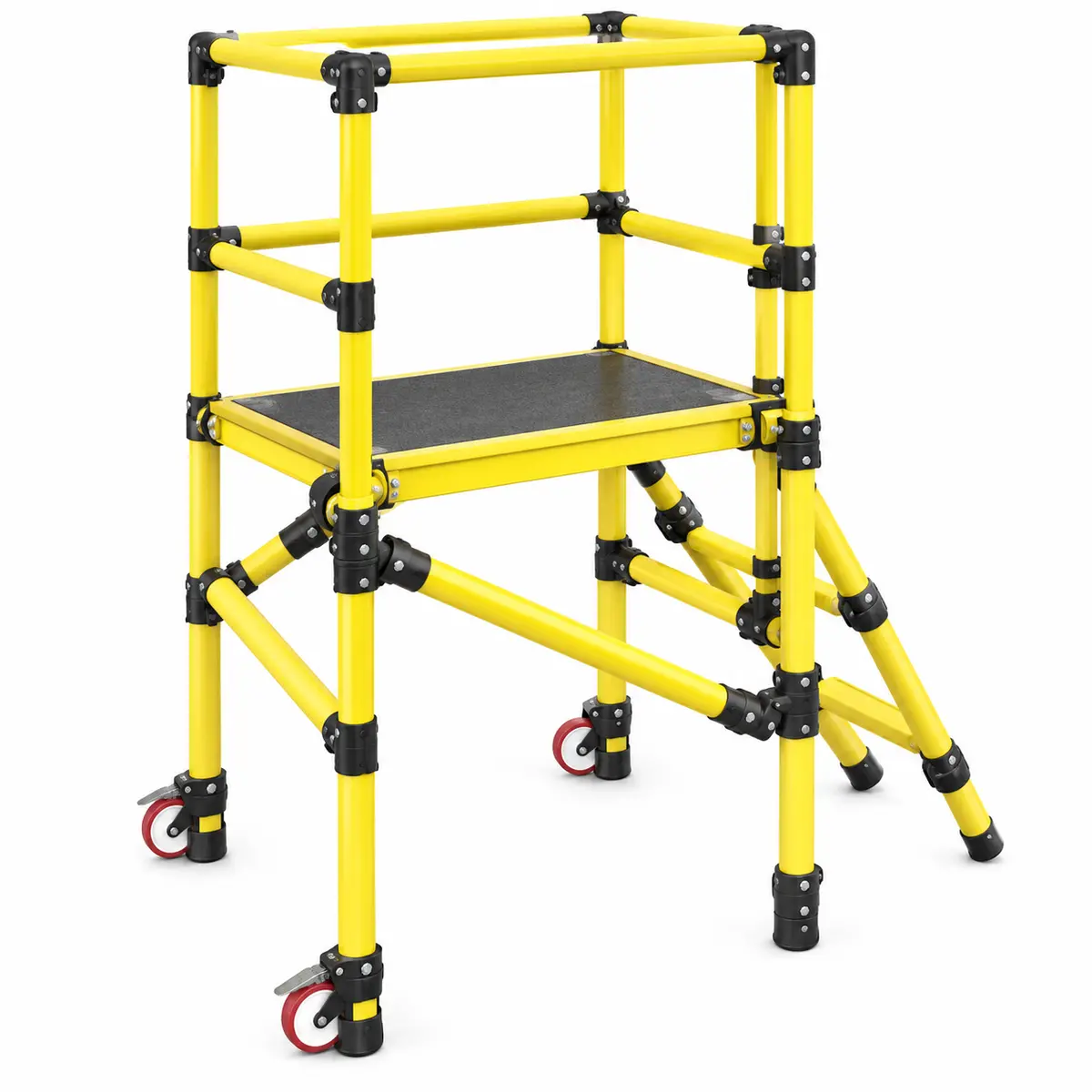

Podium Series
Fiberglass Podium Steps
A compact mobile podium platform for low-level access, available in approximately 39.4-, 49.2- and 59.1-inch platform heights.
- Width
- 28.7 in
- Deck
- 25.6 in overall length
- Color
- Yellow
Continue your research
Related fiberglass scaffold resources
Move between product, application and technical pages without losing the context of the current decision.
Bus & transit maintenance accessRelated product, application or planning guidance.Explore →Compare fiberglass scaffold sizesRelated product, application or planning guidance.Explore →Fiberglass scaffold tower kitsRelated product, application or planning guidance.Explore →Compatible parts and componentsRelated product, application or planning guidance.Explore →Fiberglass scaffold homeRelated product, application or planning guidance.Explore →
Answers before you quote
Fiberglass scaffold FAQs
Clear answers help teams evaluate fit, collect the right project details and begin a productive conversation.
Ask a QuestionWhat bay lengths are available?
The source system includes 6-, 8- and 10-foot component sets. Current configured tower-kit references are published for 6- and 8-foot towers; 10-foot component availability is confirmed during quoting.
Which extension-frame heights are available?
The source catalog lists 4-foot, 5-foot-6-inch and 6-foot-9-inch extension frames plus an adjustable 6-to-7-foot base frame.
Are casters and platforms included automatically?
No. The source catalog notes that casters and platforms are ordered separately for the base section. The quote confirms the complete required package.
Need the right configuration?
Tell us about the work—not just the height.
Share the application, footprint, environment and access requirements. We’ll help identify a practical next step.
