Restricted routes

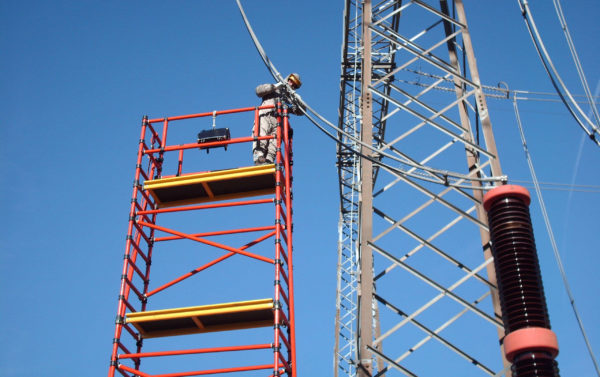

Narrow frames around 27.6 to 33.5 inches can help with doors, aisles and equipment rooms, subject to the complete assembled footprint.
Compare tower dimensions and configurations
Fiberglass Scaffold Sizes & Tower Comparison
Compare fiberglass scaffold widths, deck lengths, frame heights and access configurations before requesting a complete project-specific tower quote.
Non-conductive materialCorrosion resistantNationwide support
Compare width, deck and accessConfigured around the task, site and complete system
Application overview
Compare fiberglass scaffold dimensions before choosing a tower
Fiberglass scaffold size is more than overall height. Frame width, deck length, frame-section height, access method, caster footprint and stabilizer space all affect whether a tower can reach the work, travel through the facility and provide a practical platform. This guide compares the published dimensions in the current catalog without treating maximum source-family height as an automatically approved jobsite configuration.
Selection boundaryFinal equipment selection depends on the complete configuration, manufacturer instructions, site conditions and the employer’s competent safety review.
Where it fits
Common tasks and operating contexts
Real-world starting points for discussing the work, footprint and environment.
Broader work areas
Double-width frames around 47.2 to 57.1 inches provide more platform area where the site allows a larger base.
Platform length choices
Current product families include deck lengths from approximately 78.7 to 118.1 inches, depending on series.
Low-level access
Podium configurations provide compact standing heights for repeat service, inspection and production tasks.
Selection guidance
Compare width, length, platform position and route
Do not choose a scaffold from a single nominal dimension. Measure the entire travel path and final work zone, then compare those measurements against the exact supplied configuration. Caster width, guardrails, stabilizers and access components can change the usable envelope.
Discuss Your Requirements01—05
Information to include
- Narrowest doorway, aisle, turn and threshold on the route
- Required platform elevation and approximate working reach
- Desired deck length and usable platform area
- Available floor space for casters, outriggers and stabilizers
- Overhead clearance, surface condition and relocation frequency
A better specification process
From field conditions to a complete quote
Documenting the work before choosing components reduces assumptions and helps compare practical options.
Measure the route
Record the smallest opening and most restrictive turn from receiving or storage to the work zone.
Define the work platform
Document required standing height, deck area, work-side orientation and tool needs.
Compare exact configurations
Use the product catalog dimensions and request a quote for the complete compatible system.
Continue your research
Related fiberglass scaffold resources
Move between product, application and technical pages without losing the context of the current decision.
All fiberglass productsRelated product, application or planning guidance.Explore →29-inch narrow systemRelated product, application or planning guidance.Explore →54-inch double-width systemRelated product, application or planning guidance.Explore →Narrow vs double-width guidanceRelated product, application or planning guidance.Explore →
Page-specific answers
Fiberglass Scaffold Sizes & Tower Comparison FAQs
Clear answers help teams evaluate fit, collect the right project details and begin a productive conversation.
Ask a QuestionWhat is considered a narrow fiberglass scaffold?
There is no single universal width. Current catalog narrow configurations include frame widths around 27.6, 28.7 and 33.5 inches depending on product family.
How wide are double-width fiberglass towers?
Current catalog wide configurations include approximately 47.2, 53.9 and 57.1-inch frame widths depending on series.
What deck lengths are available?
Current product families include approximately 78.7, 94.5, 98.4 and 118.1-inch deck lengths depending on the selected series.
Does the tallest listed configuration work for every site?
No. Source-family maximum height does not establish an allowable jobsite setup. The complete configuration, components, stabilization, surface, environment and applicable requirements must be reviewed.
Need the right configuration?
Tell us about the work—not just the height.
Share the application, footprint, environment and access requirements. We’ll help identify a practical next step.
